| الاسم التجاري: | LIGHTBO |

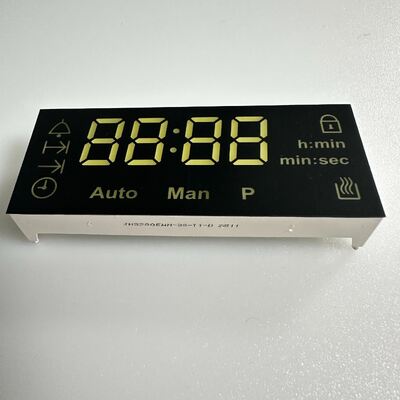

| رقم الطراز: | LB3280EWH-3S-T1-D |
| الـ MOQ: | 1000 |
| السعر: | Negotiate |
| شروط الدفع: | ترينيداد وتوباغو، ويسترن يونيون |
| القدرة على التوريد: | 50000 قطعة/أيام |
High-performance LED displays engineered for industrial applications with superior brightness and reliability.
| Parameter | Symbol | Ratings | Unit |
|---|---|---|---|
| Forward Current (per dice) | Ipm | 20 | mA |
| Reverse Voltage (per dice) | Vr | 5 | V |
| Power Dissipation (per dice) | Pm | 80 | mW |
| Operating Temperature Range | Topr | -40~+85 | ºC |
| Storage Temperature Range | Tstg | -40~+85 | ºC |
| Solder Temperature (≤3 seconds) | Th | 260 | ºC |
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Forward Voltage | Vf | If=10mA | 1.8 | 2.4 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensity | Iv | If=10mA | 30 | 40 | mcd | |
| Spectrum Width Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 569 | 574 | nm |
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Forward Voltage | Vf | If=10mA | 1.8 | 2.5 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensity | Iv | If=10mA | 60 | 80 | mcd | |
| Spectrum Width Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 585 | 595 | nm |
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Forward Voltage | Vf | If=10mA | 1.8 | 2.4 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensity | Iv | If=10mA | 60 | 80 | mcd | |
| Spectrum Width Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 600 | 605 | nm |
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Forward Voltage | Vf | If=10mA | 1.8 | 2.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensity | Iv | If=10mA | 50 | 60 | mcd | |
| Spectrum Width Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 630 | 635 | nm |
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Forward Voltage | Vf | If=10mA | 1.8 | 2.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensity | Iv | If=10mA | 80 | 100 | mcd | |
| Spectrum Width Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 625 | 635 | nm |
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Forward Voltage | Vf | If=10mA | 2.6 | 3.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensity | Iv | If=10mA | 120 | 180 | mcd | |
| Spectrum Width Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 515 | 525 | nm |
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Forward Voltage | Vf | If=10mA | 2.8 | 3.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensity | Iv | If=10mA | 120 | 140 | mcd | |
| Spectrum Width Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 460 | 465 | nm |
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Forward Voltage | Vf | If=10mA | 2.8 | 3.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensity | Iv | If=10mA | 120 | 140 | mcd | |
| LED color Temperature | K | If=10mA | 5500 | 20 | 6800 | K |
| Chromaticity Coordinates | X/Y | If=10mA | 0.29,0.32 | 0.30,0.33 | nm |
7 Segment LED Display, Customized LED Display, Numeric LED Display, Dot Matrix LED Display - widely used for home appliances, temperature indicators, humidity indicators, refrigerator controllers, thermostat indicators, heating and cooling control systems.
SHENZHEN GUANGZHIBAO TECHNOLOGY CO., LTD. (BRAND: LIGHT-BO) - Established in 2006, specializing in R&D, manufacturing and sales of optoelectronic LED displays. ISO 9001:2015 Quality Management Systems certified with over 15 years of OEM and ODM experience.
