| الاسم التجاري: | LIGHTBO |

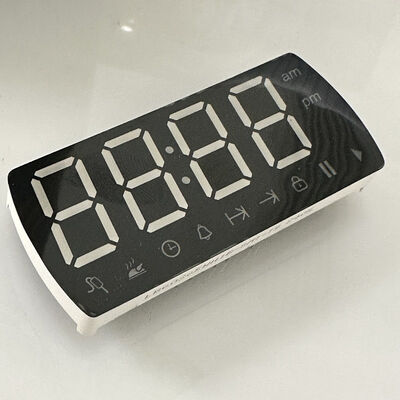

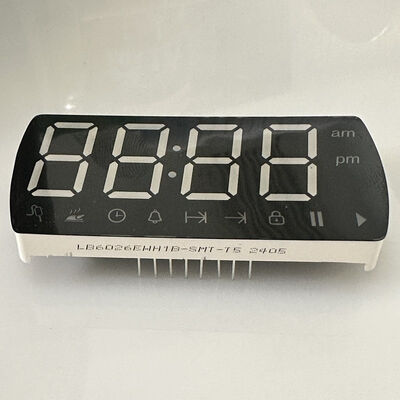

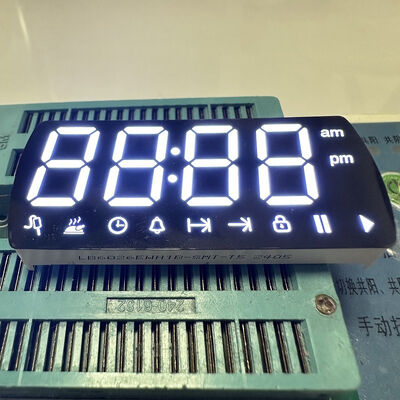

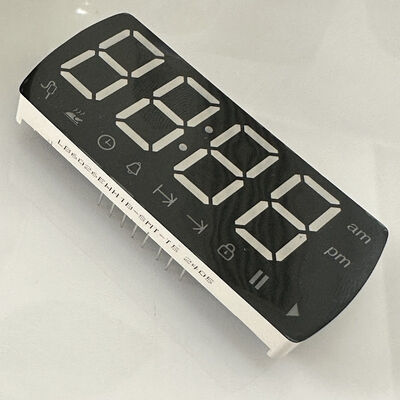

| رقم الطراز: | LB6026EWH1B-SMT-T5 |
| الـ MOQ: | 1000 |
| السعر: | Negotiate |
| شروط الدفع: | ترينيداد وتوباغو، ويسترن يونيون |
| القدرة على التوريد: | 50000 قطعة/أيام |
| Parameter | Symbol | Ratings | Unit |
|---|---|---|---|
| Forward Current (per dice) | Ipm | 20 | mA |
| Reverse Voltage (per dice) | Vr | 5 | V |
| Power Dissipation (per dice) | Pm | 80 | mW |
| Operating Temperature Range | Topr | -40~+85 | ºC |
| Storage Temperature Range | Tstg | -40~+85 | ºC |
| Solder Temperature (≤3 seconds) | Th | 260 | ºC |
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Forward Voltage | Vf | If=10mA | 1.8 | 2.4 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensity | Iv | If=10mA | 30 | 40 | mcd | |
| Spectrum Width Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 569 | 574 | nm |
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Forward Voltage | Vf | If=10mA | 1.8 | 2.5 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensity | Iv | If=10mA | 60 | 80 | mcd | |
| Spectrum Width Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 585 | 595 | nm |
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Forward Voltage | Vf | If=10mA | 1.8 | 2.4 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensity | Iv | If=10mA | 60 | 80 | mcd | |
| Spectrum Width Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 600 | 605 | nm |
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Forward Voltage | Vf | If=10mA | 1.8 | 2.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensity | Iv | If=10mA | 50 | 60 | mcd | |
| Spectrum Width Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 630 | 635 | nm |
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Forward Voltage | Vf | If=10mA | 1.8 | 2.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensity | Iv | If=10mA | 80 | 100 | mcd | |
| Spectrum Width Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 625 | 635 | nm |
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Forward Voltage | Vf | If=10mA | 2.6 | 3.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensity | Iv | If=10mA | 120 | 180 | mcd | |
| Spectrum Width Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 515 | 525 | nm |
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Forward Voltage | Vf | If=10mA | 2.8 | 3.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensity | Iv | If=10mA | 120 | 140 | mcd | |
| Spectrum Width Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 460 | 465 | nm |
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Forward Voltage | Vf | If=10mA | 2.8 | 3.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensity | Iv | If=10mA | 120 | 140 | mcd | |
| LED color Temperature | K | If=10mA | 5500 | 20 | 6800 | K |
| Chromaticity Coordinates | X/Y | If=10mA | 0.29,0.32 | 0.30,0.33 | nm |
We are an original manufacturer with more than 20 years experience in optoelectronic LED displays.
Our main products include 7 Segment LED displays, SMD LED Displays, Dot Matrix LED Displays, Arrow LED displays, Custom Design LED Displays, LED light bars, Through Hole LEDs, SMD LEDs, LED Backlights, and more.
Our MOQ is 1000 pieces. We also accept sample orders and small quantities below our MOQ.
Yes. We provide 5-10 free samples for testing, with freight costs borne by the customer.
Delivery time is approximately 10-20 days, depending on order quantity and raw materials. For urgent orders with available materials, we can complete within 7-10 days.
We accept bank transfer, T/T, Western Union, and PayPal for small amounts. Payment methods are negotiable.
Yes. We quote prices based on INCOTERMS including EXW, FOB, CIF, and DDP.
Please provide your email address or contact us directly through our website.
Yes, we offer discounts for bulk orders.
Shipping costs depend on shipment size and method. We provide quotes upon request.
Yes, OEM & ODM services are available. We can customize sizes, LED colors, and functional icons according to your requirements.
Yes, we will not share or sell your design to others without authorization.
Sample lead time is approximately 20-25 working days after receiving mold cost and design approval.
We ship via DHL, FedEx, UPS, EMS, by air, or by sea. You can choose the method that works best for you.
As ISO 9001 certified manufacturers with over 20 years of experience, we conduct 100% testing of all products twice before shipment.
