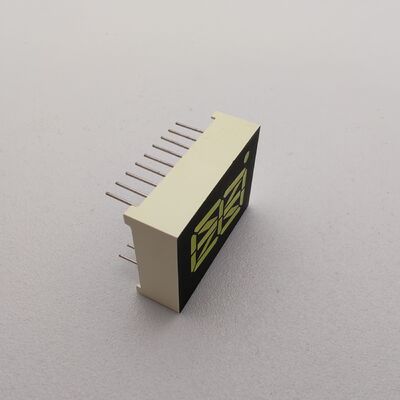

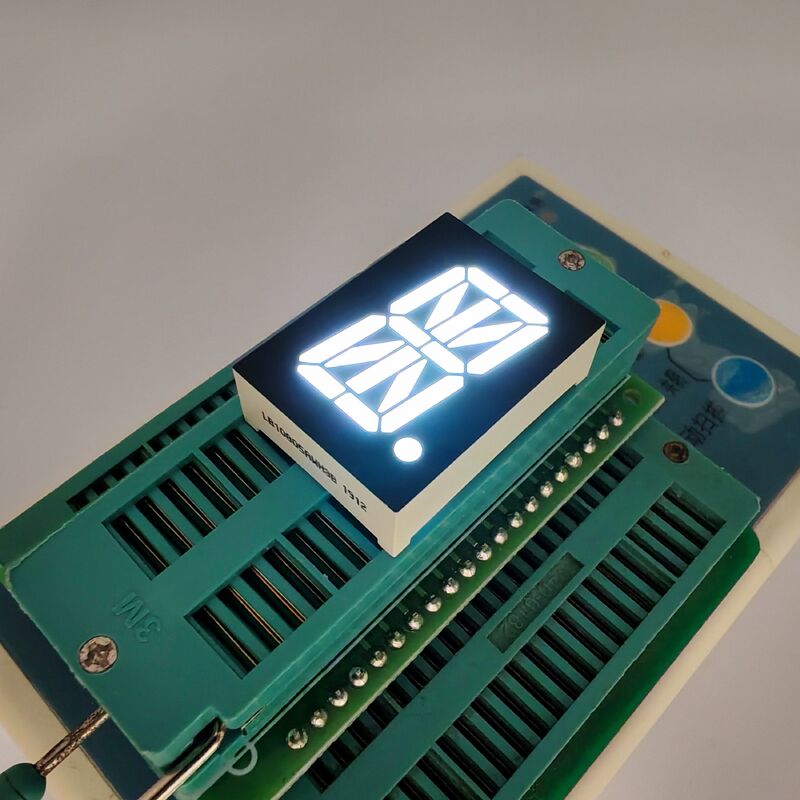

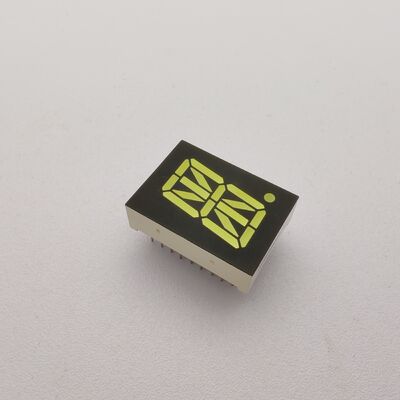

16-Segment White Alphanumeric LED Display Module

16-Segment White Alphanumeric LED Display Module

الاسم التجاري:	LIGHT-BO
رقم الطراز:	LB10805DWH3B
الـ MOQ:	1000
السعر:	Negotiate
شروط الدفع:	/ تي تي، ويسترن يونيون
القدرة على التوريد:	20000pcs/أيام

معلومات مفصلة

وصف المنتج

معلومات مفصلة

مكان المنشأ:

شنتشن ， الصين

إصدار الشهادات:

ISO9001&RoHS

شدة مضيئة:

120-140MCD

ضمان:

عامين

لون الصمام:

أبيض ناصع جدا

درجة حرارة التخزين:

-40 درجة مئوية إلى +85 درجة مئوية

خدمة:

تصنيع المعدات الأصلية / أوديإم

رقم الرقم:

رقم واحد

تفاصيل التغليف:

EPE+carton

القدرة على العرض:

20000pcs/أيام

إبراز:

16-segment white LED display module,alphanumeric LED display module,16-segment LED display with warranty

alphanumeric LED display module

16-segment LED display with warranty

وصف المنتج

16-Segment White Alphanumeric LED Display Module

Product Overview

Standard Model: LB10805DWH3B | Custom part number printing available

Digit Number	1 digit	Can be configured as 2, 3, 4, 5, or 6 digits
Standard Color	White	Other colors include blue, pure green, yellow-green, orange, etc.
Polarity	Common Anode	Common Cathode also available
Lifespan	80,000 hours	-
Free Samples	Yes, supported	Tooling samples require 15-20 working days
Sample Lead Time	5-7 working days	-
Production Lead Time	15-20 working days	Subject to order quantity
OEM/ODM Support	Fully supported	Based on customer drawings or ideas
Logo Printing	Supported	Customization based on provided artwork
Minimum Order Quantity (MOQ)	1,000 PCS	First order MOQ can be 100-500 PCS

Technical Specifications

Optical Design: High-contrast white-on-black display ensuring superior legibility
Electrical Performance: High luminous intensity combined with low operating current
Optical Quality: Uniform segment illumination with consistent brightness
Integration: Designed for easy PCB mounting and direct IC interface compatibility
Environmental Compliance: Conforms to RoHS standards for environmental safety

Product Parameters by Color Code

Yellow Green - J/JU: Elevate your displays with vivid hues tailored to meet your unique display requirements.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	30		40	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		574	nm

Amber/Yellow - Y: Choose this warm, inviting color to craft displays that command attention and exude warmth.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

Orange - F: Make your display settings pop with our dynamic and eye-catching color choice.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	600		605	nm

Super Bright Red - R: Revel in the vibrancy of this rich, captivating color, perfect for any striking display.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	50		60	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	630		635	nm

Ultra Bright Red - UR: Ensure superior visibility with an intense and vivid red that enhances any display.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	80		100	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	625		635	nm

Pure Green: Opt for a refreshing and clear choice that complements eco-friendly designs effortlessly.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		180	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	515		525	nm

Ultra Bright Blue - BH: Infuse your display with a cool, bright hue, lending a contemporary aesthetic to any setting.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	460		465	nm

Ultra Bright White - WH: Achieve unparalleled clarity and sophistication with this immaculate choice, elevating your displays.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
LED Color Temperature	K	If=10mA	5500	20	6800	K
Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32		0.30,0.33	nm

Absolute Maximum Ratings (Ta=25ºC)

Uncover the robust performance parameters that define the remarkable capabilities of our LED display.

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature (≤3 seconds)	Th	260	ºC

Company Profile

Shenzhen Guangzhibao Technology Co., Ltd. (BRAND: LIGHT-BO), established in 2006, symbolizes excellence in OEM and ODM services. As an ISO 9001:2015 certified leader, our legacy of over 15 years is marked by quality and innovation.

LIGHTBO propels clients to new heights with high-quality, cost-effective custom solutions, reducing expenses and fortifying competitive advantages globally.

Product Applications

7 Segment LED Display, Customized LED Display, Numeric LED Display, Dot Matrix LED Display: Our innovative products find applications in home appliances, temperature and humidity indicators, refrigerator controllers, thermostats, and heating and cooling systems, showcasing our commitment to performance.

Certifications

Office and Factory Overview

Company Exhibitions

Various Transportation Methods

Frequently Asked Questions

Q1: Are you a trading company or manufacturer?

A: We are original manufacturer with more than 20 years experience in optoelectronic LED displays.

Q2: What is your main products?

A: Our main products include 7 Segment LED display, SMD LED Display, Dot matrix LED Display, Arrow LED display, Custom Design LED Display, LED light bar, Through hole led, SMD LEDs, LED Backlights, and so on.

Q3: What is your MOQ?

A: Our MOQ is 1000 pcs. We can also accept sample orders and small orders with quantity less than our MOQ.

Q4: Before placing order, Can I get some samples for test?

A: Yes. We can provide 5-10 free samples for your testing, but the freight cost will be borne by the customer.

Q5: How long is your delivery time?

A: Delivery time: About 10-20 days; According to order quantity and raw materials. If you have urgent order, and we have raw materials in stock, we can adjust our production plan to make it ready within 7-10 days.

Q6: What is your terms of payment?

A: We accept bank transfer, T/T, Western Union and Paypal with small amount. Details of payment methods can be negotiable.

Q7: Can you quote me FOB prices?

A: Yes. We can quote you prices based on incoterms EXW, FOB, CIF, DDP.

Q8: How can I get your catalogue and price list?

A: Yes. Please let us know your email address or contact us from website directly for our catalogue and price list.

Q9: Can I negotiate the prices?

A: Yes, we may consider discounts for bulk orders.

Q10: How much will the shipping charges be?

A: It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested.

Q11: Can you do custom design products?

A: Yes, OEM&ODM service are available. We can customize the sizes, LED color and functional icons according to your requirements.

Q12: If I send my design, can you make it for myself only, and will not show it to anyone else?

A: Yes, we will not show it or sell to others without your authorization.

Q13: What will be the samples lead time for customized products?

A: Samples lead time will be about 20-25 working days after receiving mold cost and mold drawing approval from customers.

Q14: What is the shipping methods?

A: We usually ship the goods by DHL, FEDEX, UPS, EMS, BY AIR, BY SEA etc. You can also choose the other way that best for you.

Q15: How do you ensure the quality of your products?

A: We are ISO 9001 QMS certified manufacturers with more than 20 years experience. We conduct twice 100% percent test for all of our products before shipment.
