| الاسم التجاري: | LIGHT-BO |
| رقم الطراز: | LB30803LC1B |
| الـ MOQ: | 1000 |
| السعر: | Negotiate |
| شروط الدفع: | / تي تي، ويسترن يونيون |
| القدرة على التوريد: | 20000pcs/أيام |

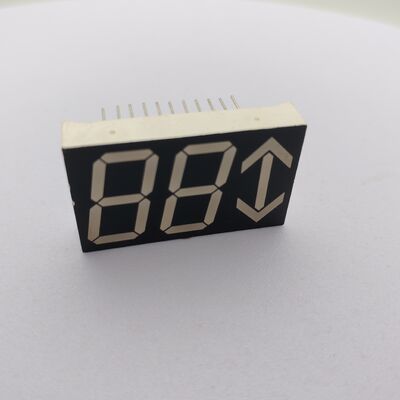

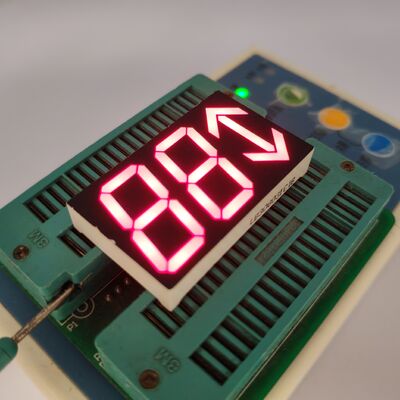

Elevator Floor Indicator: High-Visibility Red 7-Segment Display with Directional Arrow
| Feature Category | Standard Specification | Customization & Options |
|---|---|---|
| Product Model | LB30803LC1B | Custom part number marking available |
| Description | High-brightness red 7 segment + arrow LED display for elevator floor indication | Tailored designs and application solutions |
| Display Format | 3 digits + integrated arrow | 2-6 digits, with or without arrow |
| LED Color | High-brightness red | White, blue, pure green, yellow green, orange, etc. |
| Electrical Polarity | Common anode | Common cathode |
| Lifetime | 80,000 hours | - |
| Samples | Complimentary evaluation samples | Tooling/mold samples: 15-20 working days |
| Sample Lead Time | 5-7 working days | Depends on final specification |
| Production Lead Time | 15-20 working days | Based on confirmed order quantity |
| OEM/ODM | Fully supported | Development from your drawing or concept |
| Logo Printing | Supported | Applied according to your artwork |
| MOQ | 1,000 pcs | Pilot orders of 100-500 pcs negotiable |
High Luminous Efficiency: Introducing our state-of-the-art High Bright Red 7 Segment + Arrow LED Display, a pinnacle of engineering crafted especially for elevator floor indicators. Operating with optimal forward voltage, this display radiates a dazzling, high-intensity light output. Illuminate your electric scooters and systems with breathtaking brilliance, all while achieving unmatched efficiency that stands as a hallmark of innovation.
Low Power Consumption: Explore a new frontier of energy-saving technology with our LED display, designed for ultra-low operating current. This feature drastically enhances your product's energy efficiency, elevating its performance while conserving critical power resources. It represents an eco-friendly and forward-thinking choice for today's modern systems, showcasing a commitment to sustainability without compromising excellence.
Uniform Illumination: Embark on an awe-inspiring visual experience with our LED display, which delivers seamless consistency and pristinely even brightness. Each segment shines with exacting precision, ensuring displays that are both impeccable and captivating, providing an impressive professional finish every single time.
Standard Sizing: Our LED displays are thoughtfully engineered to blend effortlessly into your existing systems. They adhere to industrial standard dimensions, ensuring an uncomplicated integration that simplifies both installation and maintenance processes, allowing you to focus on what matters most.
High Reliability in Bright Light: Enjoy exceptional visibility and steadfast performance with our LED displays, regardless of ambient lighting conditions. They are designed to ensure your systems maintain a reliable and consistent glow 24/7, capable of operating flawlessly under any lighting environment, be it day or night.
Stable Performance: Rely on our LED displays for consistent, stable, and reliable performance with every use. They promise enduring operational excellence, providing assurance and peace of mind with their unwavering dedication to quality and durability.
Long Lifespan: Crafted with meticulous precision for ultimate durability, our LED displays offer an impressively long operational life. This exceptional longevity markedly reduces the need for frequent replacements, ensuring cost-effectiveness and dependability throughout their extended use.
Environmental Compliance: Our LED displays proudly adhere to RoHS and REACH standards, marrying exceptional performance with environmental responsibility. They stand as a testament to our unwavering commitment to sustainability and the principles of responsible production, echoing our dedication to a greener future.
Code: Yellow Green - J/JU. Elevate your display capabilities with the spectacular brilliance of Yellow Green. This vibrant hue is expertly crafted to meet your unique display needs, transforming your visual experience into an electrifying spectacle of color and clarity.
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | 2.4 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 30 | 40 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 569 | 574 | nm |
Code: Amber/Yellow - Y. Craft displays that captivate and comfort with the warm, welcoming glow of Amber/Yellow. This alluring shade is the epitome of charm, irresistibly drawing attention while exuding a cozy and appealing ambiance.
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | 2.5 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 60 | 80 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 585 | 595 | nm |
Code: Orange - F. Inject a burst of energy and enthusiasm into your settings with our vibrant and dynamic Orange, perfect for creating lively and engaging displays.
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | 2.4 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 60 | 80 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 600 | 605 | nm |
Code: Super Bright Red - R. Delight in the vibrant intensity of Super Bright Red. This captivating color is perfect for any vivid display, ensuring your message stands out with extraordinary vivacity and allure.
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | 2.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 50 | 60 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 630 | 635 | nm |
Code: Ultra Bright Red - UR. Maximize display visibility with Ultra Bright Red, a color of intense impact and vividness. Meticulously designed to enhance visibility, it makes your presentations exceptionally noticeable and impactful.
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | 2.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 80 | 100 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 625 | 635 | nm |
Color: Pure Green. Embrace the refreshing clarity of Pure Green, offering a seamless and harmonious look. This choice naturally complements eco-friendly designs, embodying the essence, tranquility, and freshness of nature.
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 2.6 | 3.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 120 | 180 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 515 | 525 | nm |
Code: Ultra Bright Blue - BH. Infuse any display with the sleek, contemporary aesthetic of Ultra Bright Blue. This cool, brilliant hue is perfect for modern and cutting-edge designs, adding a truly sophisticated and stylish touch.
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 2.8 | 3.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 120 | 140 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 460 | 465 | nm |
Code: Ultra Bright White - WH. Achieve unmatched clarity and sophistication with Ultra Bright White. This pristine color enhances your displays, ensuring a crisp, elegant, and visually striking presentation that captures attention with its immaculate brilliance.
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 2.8 | 3.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 120 | 140 | mcd | |
| LED color Temperature | K | If=10mA | 5500 | 20 | 6800 | K |
| Chromaticity Coordinates | X/Y | If=10mA | 0.29,0.32 | 0.30,0.33 | nm |
Absolute Maximum Ratings (Ta=25ºC): Explore the robust performance parameters that define our LED display's exceptional capabilities. These ratings ensure outstanding durability, reliability, and remarkable performance, regardless of the conditions.
| Parameter | Symbol | Ratings | Unit |
| Forward Current(per dice) | Ipm | 20 | mA |
| Reverse Voltage(per dice) | Vr | 5 | V |
| Power Dissipation(per dice) | Pm | 80 | mW |
| Operating Temperature Range | Topr | -40~+85 | ºC |
| Storage Temperature Range | Tstg | -40~+85 | ºC |
| Solder Temperature(≤3 seconds) | Th | 260 | ºC |
Shenzhen Guangzhibao Technology Co., Ltd. (BRAND: LIGHT-BO), founded in 2006, epitomizes excellence in OEM and ODM services. As an ISO 9001:2015 certified leader, our 15+ year legacy is marked by unparalleled innovation and superior quality, setting us apart in the industry.
LIGHTBO empowers clients to achieve unprecedented success with our high-quality, cost-efficient custom solutions. By strategically reducing expenses and strengthening global competitive advantages, our solutions profoundly impact your business triumphs.
7 Segment LED Display, Customized LED Display, Numeric LED Display, Dot Matrix LED Display: Our state-of-the-art offerings illuminate the world with unparalleled adaptability and exceptional quality. These displays are masterfully crafted to effortlessly blend into a vast spectrum of applications. Whether it's enhancing the functionality of home appliances, accurately displaying temperature and humidity in real-time, optimizing refrigerator controllers, or fine-tuning the precision of thermostats, alongside the intricacies of heating and cooling systems, our displays are an embodiment of our relentless pursuit of top-tier performance and cutting-edge innovation.
FAQ(Frequently Asked Questions)
Q1 Are you trading company or manufacturer
A: We are original manufacturer with more than 20 years experience in optoelectronic LED displays .
Q2 What is your main products
A: Our main products include 7 Segment LED display, SMD LED Display,Dot matrix LED Display, Arrow LED display, Custom Design LED Display ,LED light bar,Through hole led, SMD LEDs,LED Backlights, and so on .
Q3 What is your MOQ
A: Our MOQ is 1000 pcs , We can also accept sample orders and small orders with quantity less than our MOQ .
Q4 Before placing order, Can I get some samples for test
A: Yes. We can provide 5-10 free samples for your testing, but the freight cost will be borne by the customer.
Q5 How long is your delivery time
A: Delivery time:About 10-20 days; According to order quantity and raw materials. If you have urgent order,and we have raw materials in stock,
we can adjust our production plan to make it ready within 7-10 days .
Q6 What is your terms of payment
A: We accept bank transfer,T/T,Western Union and Paypal with small amount. Detailes of payment methods can be negotiatble.
Q7 Can you quote me FOB prices
A: Yes. We can quote you prices based on incoterms EXW, FOB, CIF,DDP.
Q8 How can I get your catalogue and price list
A: Yes . Please let us know your email address or contact us from website directly for our catalogue and price list .
Q9 Can I negotiate the prices
A: Yes, we may consider discounts for bulk orders.
Q10 How much will the shipping charges be
A: It depends on the size of your shipment and the method of shipping.
We will offer the charge to you as you requested.
Q11 Can you do custom design products
A: Yes , OEM&ODM service are available .We can customize the sizes,led color and functional icons according to your requirements.
Q12 If I send my design , can you make it for myself only ,and will not show it to any one else
A: Yes , we will not show it or sell to others without your authorization.
Q13 IWhat will be the samples lead time for customized products
A: Samples lead time will be about 20-25 working days after receiving mold cost and mold drawing approval from customers .
Q14 What is the shipping methods
A:We usually ship the goods by DHL, FEDEX,UPS,EMS,BY AIR,BY SEA etc, also you can choose the other way that best for you.
Q15 How do you ensure the quality of your products
A: we are ISO 9001 QMS ceritified manufacturers with more than 20 years experience ,We conduct twice 100% percent test for all of our products before shipment .
