| الاسم التجاري: | LIGHT-BO |
| رقم الطراز: | LB6031AWRG3S-T2-D-JT |
| الـ MOQ: | 1000 |
| السعر: | Negotiate |
| شروط الدفع: | / تي تي، ويسترن يونيون |
| القدرة على التوريد: | 20000pcs/أيام |

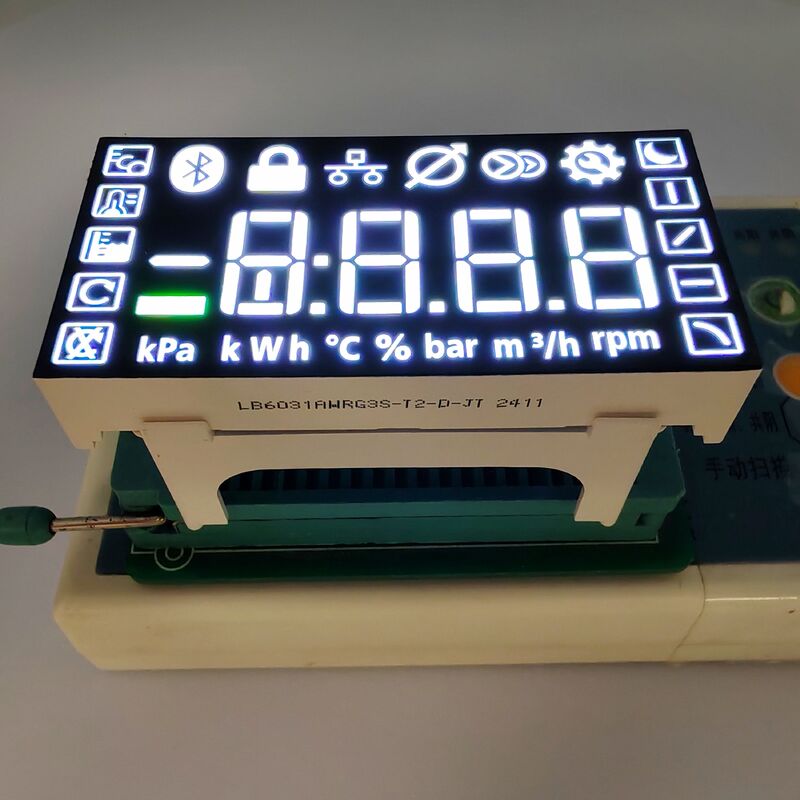

| Product Name | White/Green Customized 7-Segment LED Display for Electric Scooter | Other color and configuration options available |
| Part Number | LB6031AWRG3S-T2-D-JT | Custom part number printing supported |
| Standard Color | White & Green | Also available in white, blue, pure green, yellow-green, orange, etc. |
| Polarity | Common Anode | Common Cathode option available |
| Lifespan | 80,000 hours | - |
| Free Samples | Available | - |
| Sample Lead Time | 5-7 working days (standard samples) 15-20 working days (tooling samples) |
- |
| Production Lead Time | 15-20 working days | May vary depending on order quantity |
| OEM & ODM | Supported | Customization based on your drawings or ideas |
| LOGO Printing | Supported | According to your provided drawing or design |
| Minimum Order Quantity (MOQ) | 1,000 PCS | 100-500 PCS acceptable for initial orders |
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Forward Voltage | Vf | If=10mA | 1.8 | - | 2.4 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 | - | - | V |
| Luminous Intensity | Iv | If=10mA | 30 | - | 40 | mcd |
| Spectrum Width Of Half Value | △λ | If=10mA | - | 20 | - | nm |
| Wavelength | Dλ | If=10mA | 569 | - | 574 | nm |
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Forward Voltage | Vf | If=10mA | 1.8 | - | 2.5 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 | - | - | V |
| Luminous Intensity | Iv | If=10mA | 60 | - | 80 | mcd |
| Spectrum Width Of Half Value | △λ | If=10mA | - | 20 | - | nm |
| Wavelength | Dλ | If=10mA | 585 | - | 595 | nm |
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Forward Voltage | Vf | If=10mA | 1.8 | - | 2.4 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 | - | - | V |
| Luminous Intensity | Iv | If=10mA | 60 | - | 80 | mcd |
| Spectrum Width Of Half Value | △λ | If=10mA | - | 20 | - | nm |
| Wavelength | Dλ | If=10mA | 600 | - | 605 | nm |
| Parameter | Symbol | Ratings | Unit |
|---|---|---|---|
| Forward Current (per dice) | Ipm | 20 | mA |
| Reverse Voltage (per dice) | Vr | 5 | V |
| Power Dissipation (per dice) | Pm | 80 | mW |
| Operating Temperature Range | Topr | -40~+85 | ºC |
| Storage Temperature Range | Tstg | -40~+85 | ºC |
| Solder Temperature (≤3 seconds) | Th | 260 | ºC |
Shenzhen Guangzhibao Technology Co., Ltd. (BRAND: LIGHT-BO), established in 2006, symbolizes excellence in OEM and ODM services. As an ISO 9001:2015 certified leader, our legacy of over 15 years is marked by quality and innovation.
LIGHTBO propels clients to new heights with high-quality, cost-effective custom solutions, reducing expenses and fortifying competitive advantages globally.
Our innovative products find applications in home appliances, temperature and humidity indicators, refrigerator controllers, thermostats, and heating and cooling systems, showcasing our commitment to performance.
